CAST LOADERS
מיני שופל - קאסט - CAST
Angle blade mm1400 – height mm530 – tilting angle +/-30° – weight kg 105

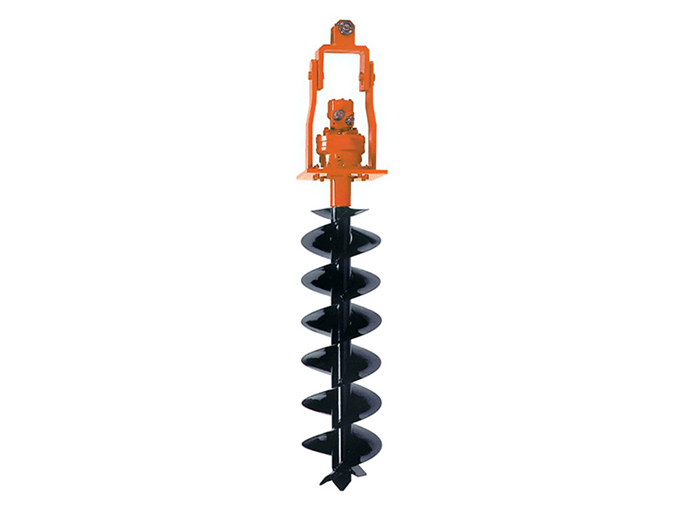

Auger Auger T1 – hydraulic system 30 l / min pressure 250 bar – engine weight kg 90 Auger T2 – hydraulic system 50 l / min pressure 250 bar – engine weight kg 100
Back 3 point lifter mm 800 – lifting capacity Kg 350(*) – weight kg 76 (*) the machine needs hydraulic rear outlet and 3 point set-up

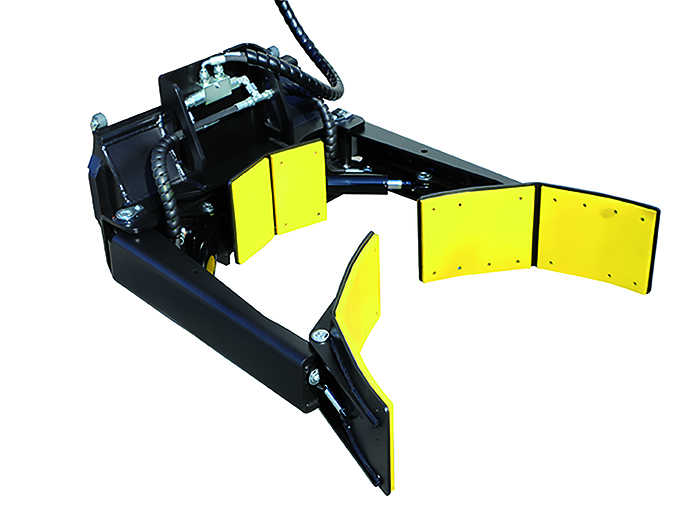

Bale clamp Wrapped bale clamp (Ø min. mm 1200 / max mm 1500) – weight kg 135 bale clamp (Ø min. mm 1200 / max mm 1500) – weight kg 148
Bucket -4in1 mm 1300 – volume l 197 – weight kg 233 mm 1504 – volume l 230 – weight kg 255

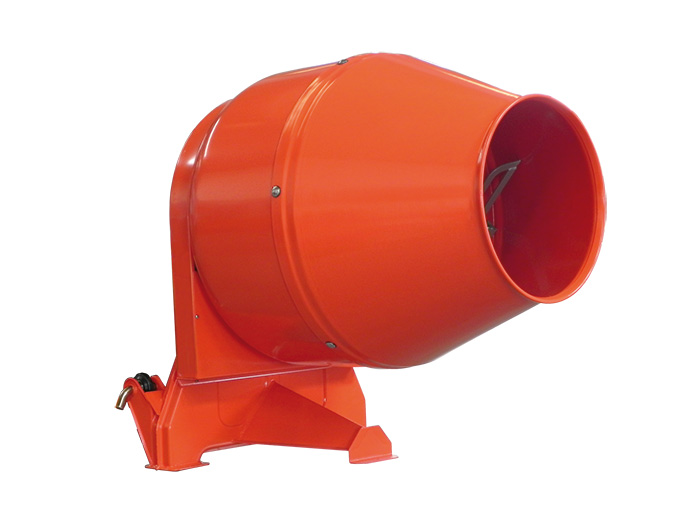

Concrete mixer volume l 250 – weight kg 100
Concrete mixing bucket mm 1500 – volume l 200 – weight kg 222 (*)The machine needs counter-weights
Excavator mm 300 – volume l 14 – weight kg 250 range of action 2000 mm – rotation 180°
Flail mower with collector mm 1200 – volume l 700 – weight kg 330
Floating rotary broom swiveling mm 1300 (*) – weight kg 160 swiveling mm 1600 (*) – weight kg 192 (*) the machine needs front auxiliary electric outlet 165W
Forged teeth for bucket 4 in 1 6 pcs. for bucket 4 in 1 mm 1300 8 pcs. for bucket 4 in 1 mm 1504
Forged teeth for sand bucket 6 pcs. for sand bucket mm 1200 8 pcs. for sand bucket mm 1500
Front screening bucket mm 1200 – volume l 200 – pressure 180 bar – weight kg 350 (*)The machine needs counter-weights
Grabbing tool Ø min. mm 320 / Ø max mm 1000 weight kg 85
Grapple bucket mm 1100 – weight kg 180 mm 1300 – weight kg 200 (with teeth)
Hedge cutter bar Hedge cutter bar (*) mm 1600 – arm mm 1200 – tilt angle 270°- weight kg 180 mm 1900 – arm mm 1500 – tilt angle 270°- weight kg 200 (*) the machine needs front auxiliary electric outlet 165W
High tipping bucket mm 1208 – volume l 179 – weight kg 145
Highvolume bucket mm 1208 – volume l 265 – weight kg 83 mm 1508 – volume l 330 – weight kg 97
Hydraulic hammer Engine Kg 60 – hydraulic system 15-30 l/min Engine Kg 90 – hydraulic system 20-40 l/min for both model the round drill, chisel drill, asphalt drill are available
Hydraulic pile hammer Hydraulic system 15-30 l/min – engine weight kg 60
Jib boom mm 2500 – weight kg 90 – lifting capacity kg 220
Lawn mower mm 1200 – weight kg 170 mm 1350 – weight kg 185 mm 1500 – weight kg 200 Kit for side discharge, Kit for rear discharge, Mulching kit are optional for all models
Leveler
Logs grabbin tool mm 1000 – teeth length mm 1000 clamps opening mm 320 – 1000 – weight kg 131
low profile bucket mm 1200 – l 188 – weight kg 126 mm 1532 – l 240 – weight kg 146
Manure fork mm 1102 – weight kg 135 mm 1400 – weight kg 160
Mini excavator mm 300 – volume l 14 – weight kg 80
Pallet fork with shifter mm 900 – blades mm 900 – lifting capacity kg 1000 weight kg 150 mm 900 – blades mm 900 – lifting capacity kg 1800 weight kg 190
Pallet fork mm 800 – blades mm 900 – lifting capacity kg 1000 weight kg 97 mm 900 – blades mm 1200 – lifting capacity kg 1800 weight kg 150 mm 1000 – blades mm 900 – lifting capacity kg 1800 weight kg 127
Professional snow blower mm 1400 – swing +/- 30° – 2 stages / with 5 paddles weight kg 225
Professional snow plow mm1800 – tilting angle +/-32° – weight kg 260
Rotary brush mm 1200 with waste box – weight kg 144 mm 1350 with waste box- weight kg 165 mm 1500 with waste box- weight kg 200 Side brush is available for all models, the water kit is available too
Rotary mower ø mm 600 – 2400 rpm – weight kg 75
Rotary tiller mm 1050 – depht mm 150 – weight kg 100 mm 1250 – depht mm 150 – weight kg 120 (*) the machine needs hydraulic rear outlet + 3 point lifter
Round bale fork Teeth mm 640

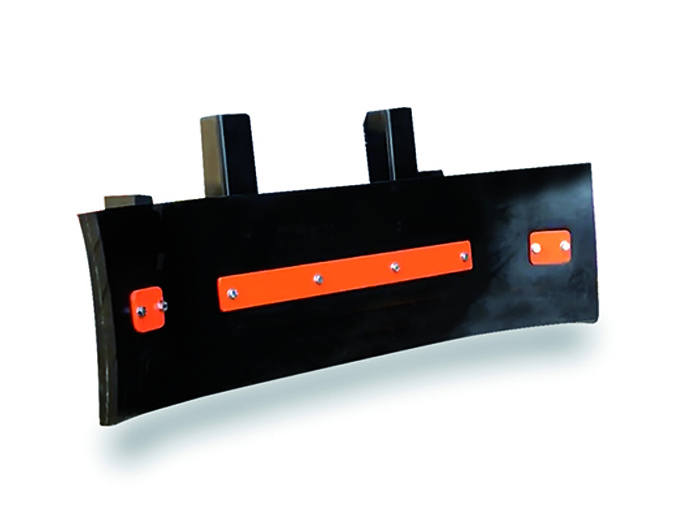

Rubber blade mm1400 – tilting angle +/-30° – weight kg 80
Sand Bucket mm 1200 – volume l 159 – weight kg 66 mm 1500 – volume l 200 – weight kg 78
Salt/sand spreader Salt/sand spreader with articulated wheel agitator – mm 1052x1000x1210 volume l 200 – spreading width m 4/15 (*) pressure 120bar – oil flow 25 l/min – weight kg 108 (*) the machine needs hydraulic rear outlet
Silage fork mm 912 – teeth mm 640 – weight kg 144
Stoneburier-Seed-drill mm 1050(*) weight kg 175 mm 1250(*) weight kg 260 (*) the machine needs hydraulic rear outlet + 3 point lifter
Timber grab lifting capacity kg 1400 – max pressure 250 bar clamp weight kg 82 – rotor weight kg 12 (*) the machine needs front auxiliary electric outlet 165W
Trencher Trencher T800 – digging depth mm 800 (mm 120 width) Enlarger digging kit mm 150 – 200 width Trench cleaner
Frontal Flail mower mm 1050/ weight kg 130 mm 1300/ weight kg 152 mm 1550/ weight kg 170 Knives for ” fine cut” are available for all models Rear connection 3rd point (*) (*) the machine needs machine needs hydraulic rear outlet + 3 point lifter
V-Plow mm 1400 – swing +/-30° – weight kg 290 mm 1600 – swing +/-30° – weight kg 340 mm 1800 – swing +/-30° – weight kg 390 mm 2200 – swing +/-30° – weight kg 430
Drills for clay/sandy soils Drill length mm 1000 Ø mm 100, 150, 200, 250, 300, 350, 400, 450, 500
Drills for stony soils (*) Drill lenght mm 1000 Ø mm 150, 200, 250 * only with Auger T2
Exstension for drills for clay/sandy soils lenght mm 1000 Ø mm 100, 150, 200, 250, 300, 350, 400, 450, 500
Exstension for drills for stony soils lenght mm 1000 Ø mm 150, 200, 250,
